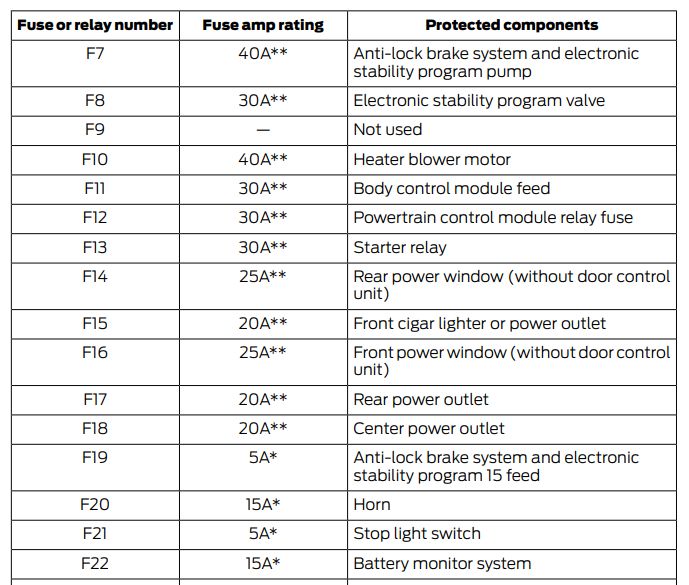

2015 Ford Escape Fuse Box Diagram. 2019 Escape Fuse Diagram — Ricks Free Auto Repair Advice Ricks Free In this article, you will find information about the fuses of the Ford Escape (models 2013, 2014, 2015, and 2016), including diagrams of the fuse boxes, a list of fuses and relays, their designation, and the location of the fuse blocks within the vehicle Fuse or relay: Ampere rating [A] Protected components: F7: 40: up to 2014: Anti-lock brake system and electronic stability program pump 50: as of 2015: Anti-lock brake system and electronic stability program pump F8: 30: Electronic stability program valve: F9: 40: as of 2017: Cooling fan (600W) 50: as of 2017: Cooling fan (390W and750W) F10
2008 Ford Escape Fuse Box Location from workshopfixritter77.z19.web.core.windows.net
Fuse box diagram (location and assignment of electrical fuses and relays) for Ford Escape (Kuga) (2013, 2014, 2015, 2016, 2017, 2019). The video above shows how to check and change blown fuses in the engine bay of your 2015 Ford Escape in addition to where the fuse box diagram is located.
2008 Ford Escape Fuse Box Location
Fuse box diagram (location and assignment of electrical fuses and relays) for Ford Escape (Kuga) (2013, 2014, 2015, 2016, 2017, 2019). In this article, you will find information about the fuses of the Ford Escape (models 2013, 2014, 2015, and 2016), including diagrams of the fuse boxes, a list of fuses and relays, their designation, and the location of the fuse blocks within the vehicle Fuse box diagram (location and assignment of electrical fuses and relays) for Ford Escape (Kuga) (2013, 2014, 2015, 2016, 2017, 2019).
2015 Ford Escape Fuse Box Location BoostCruising. 2015 Escape Fuse Box Diagram High Current Fuse Box Ford Escape (2015) - fuse box - luggage compartment
2015 Ford Escape Fuse Box. Fuse box diagram (location and assignment of electrical fuses and relays) for Ford Escape (Kuga) (2013, 2014, 2015, 2016, 2017, 2019). Click on an image to find detailed resources for that fuse box or watch any embedded videos for location information and diagrams for the fuse boxes of your vehicle.
